SI-1300-M & RGB MegaCamera™

1.3 Megapixel, 10-Bit Low-Noise, 40MHz

USB 2.0 High-Speed Digital Camera

Silicon Imaging Inc.

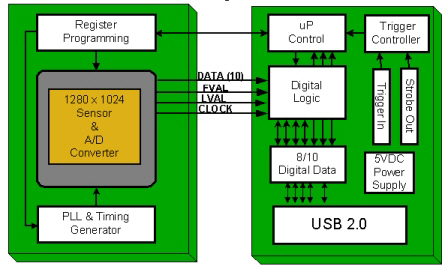

Silicon Imaging is proud to continue its innovation in high-resolution color vision camera. Driven by the growing demand for consumer Digital Still Cameras, CMOS sensors are continuing to break technical barriers and surpass the performance characteristics of CCD’s in many photonic, imaging and consumer applications. By utilizing a single highly integrated CMOS device, which incorporates Megapixel sensing areas, timing generation, signal processing and high bandwidth outputs, Silicon Imaging has developed a very compact, low-power, ultra high speed Megapixel digital camera system.

1280 x 1024 Megapixel - Ultra Resolution

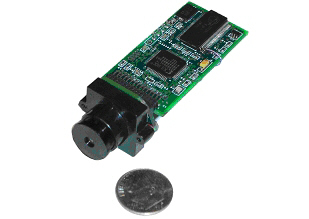

The SI-1300 is an all-digital CMOS camera that delivers 1.3 Million pixels of resolution and is capable of running at 30 frame/sec at 1024 x 1024 resolution and 25fps at its full 1280x1024 resolution. The entire package is only 45 x 52 x 50mm (33 x 40mm x 22mm in PCB) and is small enough to placed on a robot for semiconductor machine vision inspection or placed in an outdoor housing for remote surveillance. For handheld instrumentation designs the ‘R’ version PCB is small enough to fit into a 27mm diameter.

10-Bits Low-Noise (<20e-) – Sub-Pixel Accuracy

The SI-1300 MegaCameraä uses 10-Bit digitizers to sample the pixel data. Converting the pixel data directly to digital at the sensor head eliminates pixel-sampling jitter and enables accurate sub-pixel metrology, image analysis and improved live video reconstruction. The results are impressive with low-noise and low-dark currents to allow increases in gain and exposure time for improved signal noise. Image transfer can be switched from 8 to 16bit mode, to get full 10bit data. A programmable 10~40MHz clock allows for trade-off in bit-depth and speed versus exposure time and lower noise.

75 FPS VGA Subsampling - Fast Preview

Ideal for high speed preview and focusing, the SI-1300 is capable of generating imagery at over 100 frames per second by reducing the size of the readout image in color subsampling mode, This entire imager is readout by skipping pairs of pixels (4:2) to maintain color information of neighboring bayer groups. In this way, the 640x480 accurately represents the full size 1280x1024 image.

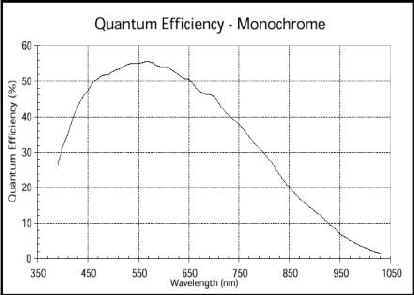

Automatic Black Level Correction – IR Sensitivity

The SI-1300 has automatic black level calibration, which measures the average value of 256 pixels from two dark rows of the imager for each of the four colors. The pixels are averaged as if they were light sensitive and passed through the appropriate color gain. This average is then digitally filtered over many frames and compared to minimum and maximum acceptable thresholds for automatic correction.

USB2.0 Bus-Powered – 40MB/sec Transfers

For low-cost and portable connectivity, with data transfer rates up to 40MB/sec, the SI-1300U provide convenient capture using the High-Speed 480Mb/sec USB 2.0 interface. It is a bus-powered unit, consuming less than 500mA at 5VDC and will operate without any external power supply. The precision-machined C-mount housing includes an integrated tethered USB cable and optional 3-pin trigger/strobe connection. For OEM board level configurations, two General Purpose Outputs are accessible; Pull-Up and pull-down driven transistors to be used to control light sources and switches.

Microsoft-XP™ Live Mode Kernel Driver - Fast captures

For applications which require a combination of high-resolution and streaming high-frame rate video images, Silicon Imaging has developed a custom driver which can request and capture double buffered images at the driver level. This method enables immediate request to camera for next image without user level software intervention. The double-buffers allow one image to processed by the host PC, while another image is being readout from the camera and filled into the user allocated memory space.
