• Dynamic magnification range of 0.08-212X offers incredible
versatility.
• High contrast images and vivid colors help your equipment perform
better.
• 0.02-125.68 mm field coverage allows you to view a wide range of
parts.
• Working distance can be varied from 36 to 356 mm.
• Add infinity corrected objective lenses to achieve unmatched edge
flatness and clarity.A

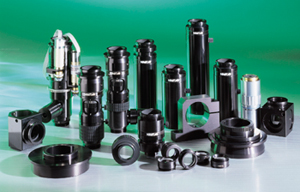

Workhorse to Fit Nearly Any Application
With a diverse selection of body tubes, accessory
optics, motorized configurations and lighting techniques, the Zoom 6000
is Navitar’s workhorse with unbeatable versatility. This modular zoom
lens system has Navitar’s world-renowned optics built in and the
"building block design" can be configured to fit nearly any
application.
The parfocal optical system of the Zoom 6000 has a 6.5:1 zoom ratio, a 0.7X to 4.5X zoom range, and total magnification (depending on lens adapters and attachments used) of 0.08X to 212X. The working distance can be varied from 36 mm (1.5") to 356 mm (14"). The achievable field of view can vary from 0.02 mm to 125.68 mm.
Unsurpassed Optical Performance
The optical system of the Zoom 6000 produces images
of the finest optical quality. Chromatic aberration and distortion have
been virtually eliminated. With the Zoom 6000 lenses, images are crisp
and clear and display optimum contrast with a minimum flare over the
entire field of view.
Manual or Detented for Calibrated
Repeatability
The Zoom 6000 lenses are available in a manual
design, as well as a detented version for calibrated repeatability.

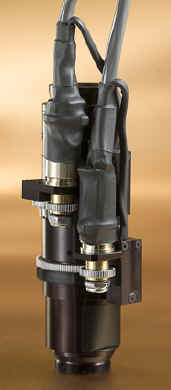

Motorized for Automation
If you are building highly automated systems, you
will like the Zoom 6000’s DC or stepper motor options for motorized
zoom and focus functions.
Navitar configures DC motors that allow continuous movement throughout the zoom or focus range. Stepper motor versions allow fine incremental movements or steps. A variety of optical and mechanical limit switches can be included to enhance the overall performance of the system.
