14X26-SZLB-XXX-0LC
High Speed Digital Data Transmission System — 26 Position
-
CAMERA LINK STANDARD for camera to frame grabber communications
-
11 shielded pairs and four drain wires
-
Entire cable bundle is shielded with foil and braid
-
Rugged MDR ribbon type contact
-
Positive retention thumbscrew shell
PHYSICAL
Connector Contact Plating
Wiping Area:
30 µ" ( 0.76 µm ) Min. Gold
Shell Options
Color:
Parchment/Beige
Material:
Overmold Option: Polyvinyl Chloride (PVC)
Shell Kit Option:
Polyester Elastomer
Cable
Color:
Parchment/Beige
Jacket Material:
Polyvinyl Chloride (PVC)
Flammability:
AWM VW-1
ELECTRICAL
Voltage Rating:
30 V
Current Rating:
1 A
Insulation Resistance:
> 1
x
10
8
at 100 Vdc
Withstanding Voltage:
350 Vrms for 1 minute
Individually Shielded Twisted Pairs
Characteristic Impedance:
100
±
10
W
Conductor Size:
28 AWG Stranded
Propogation Velocity:
1.25 ns/ft [ 4.1 ns/m ]
Skew
(within pair):
50 ps/meter maximum
Skew
(channel skew per chipset):
50 ps/meter maximum
ENVIRONMENTAL
Temperature Rating:
-20° to +75°C

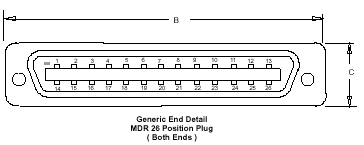

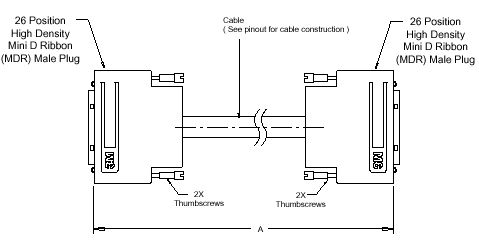

CAMERA LINK CABLE (3M)
at
100 Vdc
